BIGBOX worldwide patented

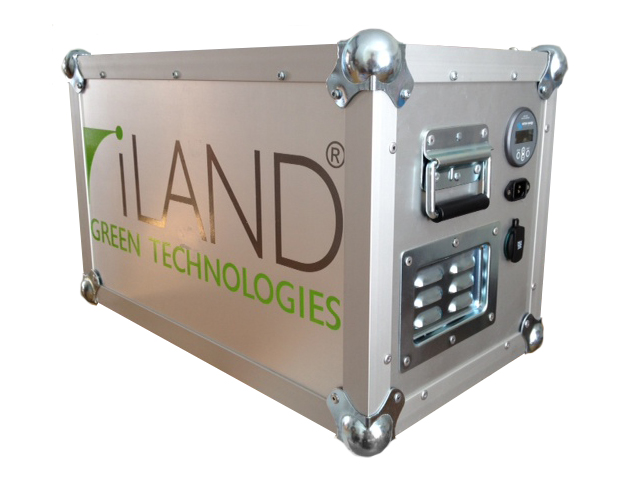

BIGBOX Lite
-already available-
Datasheet
BIGBOX
- available from November 2012-
Datasheet
SPECIFICATIONS
- Size complete : 50cm x 50cm (MEGA)
- Operating temperature range : –20°C to + 60°C
- Total weight : 30kg
- Quality : resistant to shocks, waterproof, unsinkable
- Loading time : 6-8 hours (CH conditions)
- Water and dust 100% resistant
- Military standard
- Shadow tolerant
- No temperature effect
- Lightweight
- Glass free
- Flexible
- Durable
BATTERY
- Technology : LiFePO4
- Operating voltage : 12V, 24V, 110V, 220V
- Operating current : 1A, 10A, max.16A
- Peak current : 25A
- Capacity : 200Ah
- Lifespan of the batteries > 2000 cycles
- Operating capacity: 600 - 1200 - 1800 - 2400Wh
SOLAR PANELS
- Technology : amorphous VHF technologies Flexcell
- Power : 5 x 30 W
- Operating voltage (Vmpp) : 15 V *
- Operating current (Impp) : 1800 mA *
- Open circuit voltage (Voc) : 23 V *
- Short circuit current (Isc) : 2400 mA *
- Dimensions : 642 mm x 1310 mm
- Active part : 572 mm x 1220 mm
- Thickness : 1.2 mm
- Weight: 1.5kg
- 24V@8A = 200Wc
- 50V@8A = 400Wc

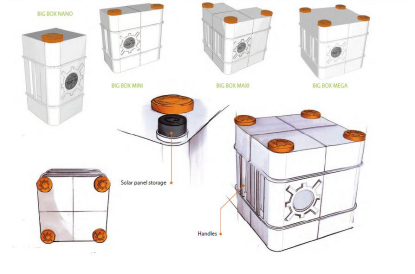

BASIC CONTENT
- A box with 4 parts
- Container : solar panel, case for LED lamps
- Battery pack : connector for 8 LED lamps, 2 USB, universal sockets, cigar lighter sockets...
ACCESSORIES
- Additional LED lamps
- Water pump
- Extension leads for LED lamps and solar panel
- Adaptor for cigar lighter socket
- 12V and 220V charger
- Autonomous LED lamp

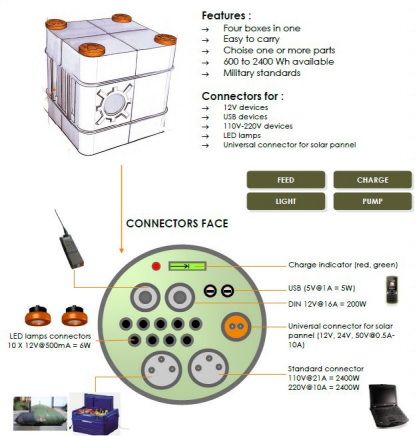

OUTPUT
- USB port : current 500mA, voltage 5V
- Universal cigar lighter connector : current 16A, voltage 12V
- 110V-220V socket : 10A to 16A

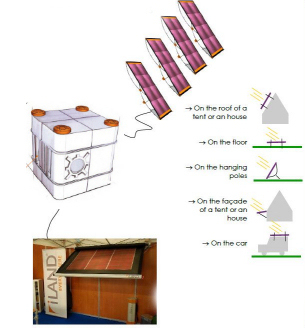

SOLAR CONNECTION OF YOUR BIGBOX
- 1-5 solar panels or
- ILAND's awning
